Tube material |
Plastic Composite/Aluminum plastic composite tubes |
Tube diameter |
Φ15—Φ50mm (plastic tube ) Φ15—Φ30mm(metal tube ) |
Tube length |
30-220mm(customizable) |
Filling volume |
5—300ml/tube(adjustable) |
Filling accuracy |
≤±1% |
Product capacity(pc/h) |
30-60tubes/min |

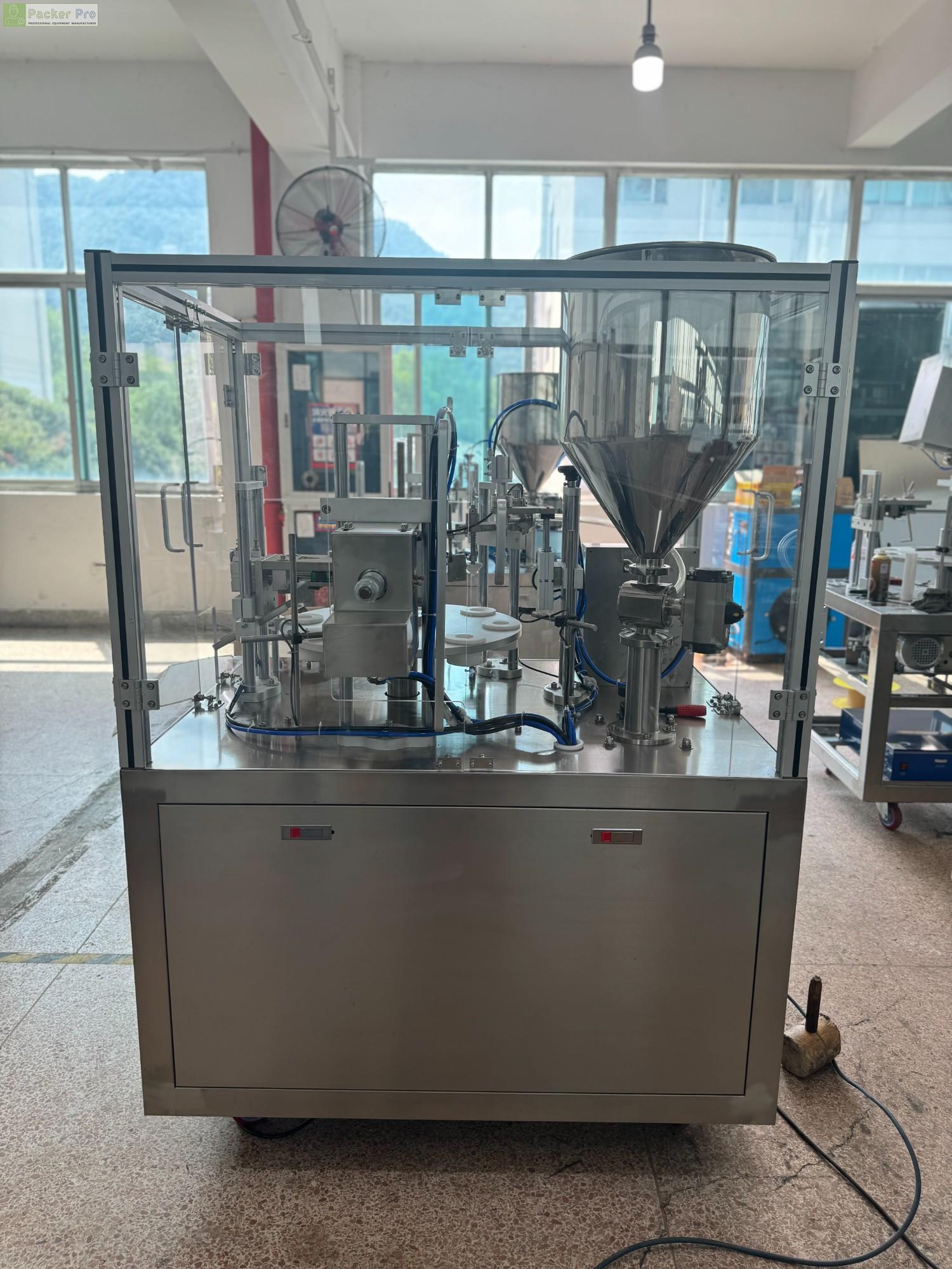

This machine is suitable for filling and sealing various plastic tubes and aluminum composite tubes, with the function of filling, sealing, date printing and end cutting. It is widely applied in the industry of daily chemical, pharmacy products, food, cosmetics etc.

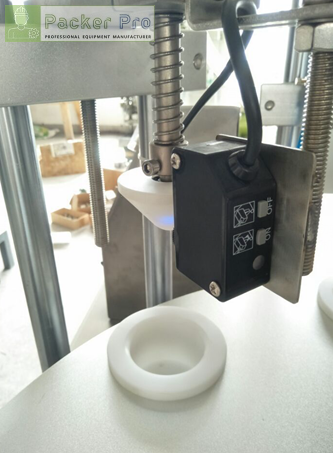

Control panel Eye mark control

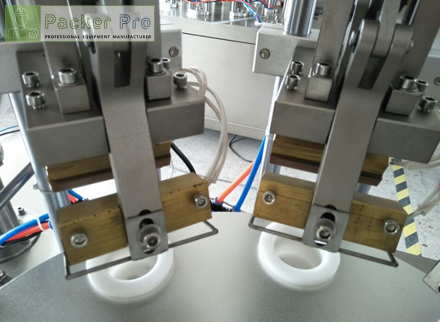

Tube sealing parts(for plastic)

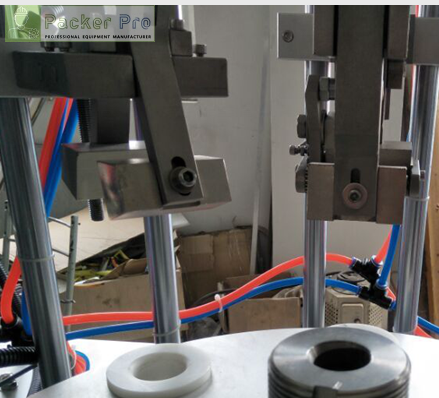

Tube folding parts(for aluminum)

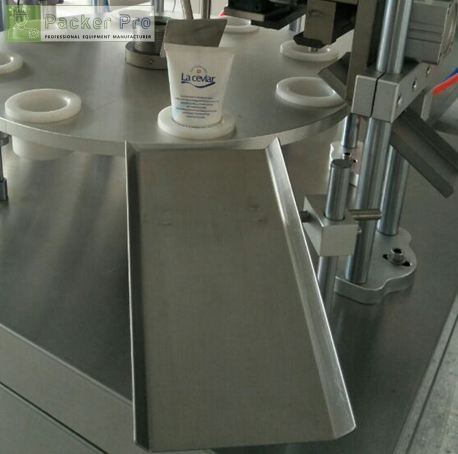

Output plate
