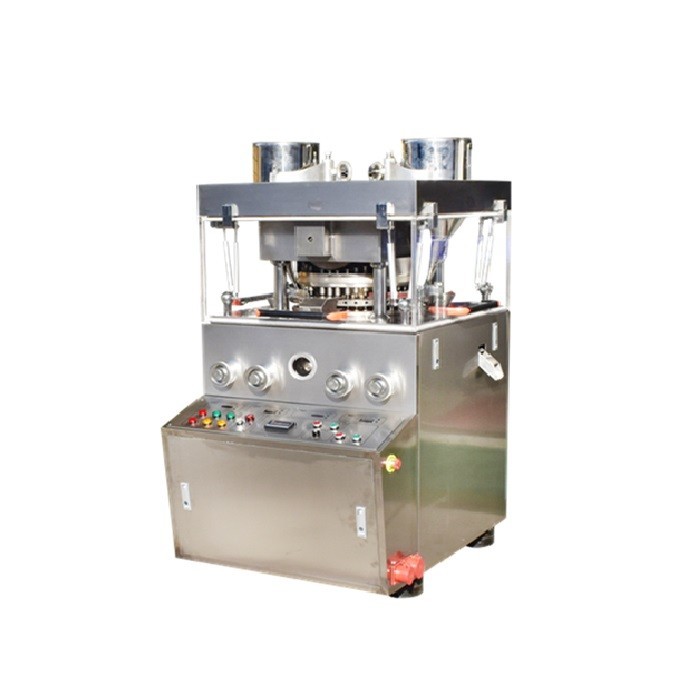

KY420D Full-automatic Tablet Press Machine(press-button control)

  • Product Item : KY420D Full-automatic Tablet Press Machine
  • Category: Tablet Pressing Machine
  • Production Capacity: 70000 tablets/h
  • Rotating speed (rmp):0-30
  • Maximum filling depth:15mm
  • Dimension(L*W*H):1240*850*1850 mm
  • Product description: Full-automatic Tablet Press Machine
  • Product Detail

Performance

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.

1. Technical Parameters of KY420D Full-automatic Tablet Press

Model

Parameter

KY420-31D

Punch pin number

31

Punch diameter

26mm

Die diameter

34mm

Production range

(10,000 tablets/h)

111600

Rotating speed (rmp)

0-30

Maximum pressure

100KN

Maximum filling depth

15mm

Tablet thickness

0.56mm

Maximum tablet diameter

Ф20mm

Maximum abnormal axis size

25mm

Punch length

115mm

Working noise

≤70dB

Total power

5.5KW/380V50Hz,three-phase five-wire system

Bounday dimension of equipment

1240*850*1850 mm

Net weight of equipment

1750kg

Remark

The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type.


Dust Collector XCJ-1.1

Performance

It’s widely applicable to clean dust on the equipment and in the enviroment of industrial production, such as medicine, foods, chemical industries etc. It’s main material adopted the stainless steel.

Machine Photo


Main Technical Data

Product No.

XCJ-1.1

Air-breathing Volume (m3/h)

360

Min. Vacuum Target (pa)

19500

Total Power (kw)

1.1

Overall Size (mm)

700*460*1030

Weight (kg)

70
