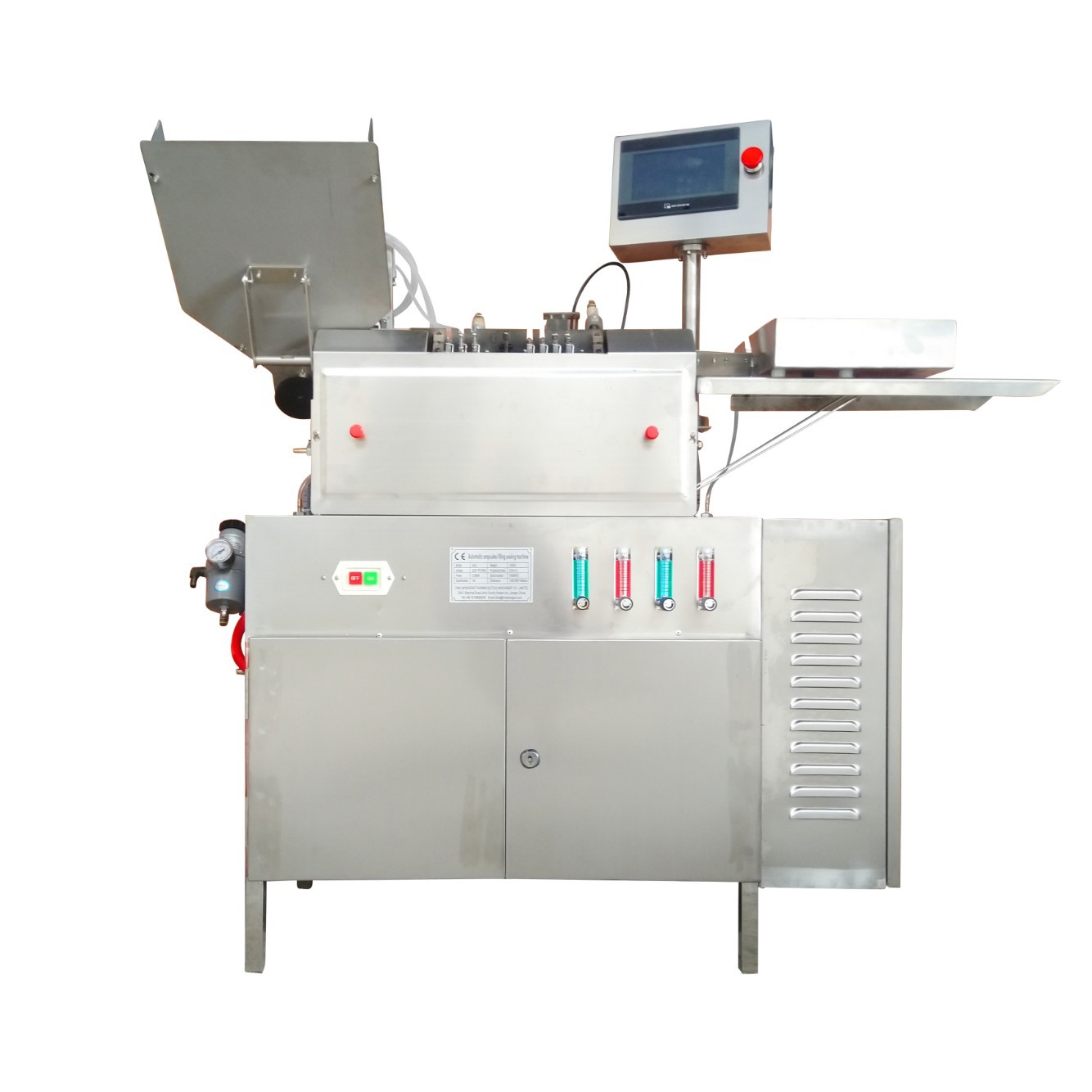

The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .
It adopts the rectangular feeding instead of the traditional ampoule feeding methods .
In such case ,the feeding is steady with no easy broken ampoule .
A modern clutch is mouthed under the ampoule feed hopper .
Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .
So the ampoule lost can be reduced .
In the part of stopping filling where changes electromagnetic switch into mechanical switch
It is reliable and durable .
Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .
It reduces the broken rate of the finished products of ampoules tremendously.
Model |
AGG Two head
|
||
Specification
|
1~2ml
|
5~10ml
|
20ml
|
Output
|
4000~4800pcs/H
|
1680~2100pcs/H
|
1280~1800pcs/H
|
Power and voltage
|
0.37kw , 220v/110v,
|
||
Fuel consumption
|
2-2.5m3/h(gas) 0.08-0.1MPa(LPG) |
||
Combustion-supporting Consumption |
0.7m3/h Oxygen 0.1MPa |
||
Outline Dimension(L*W*H) |
1300*700*1400mm |
||
Machine Weight(kg) |
180kgs |
