Anhui packerpro Co.ltd
Usage:

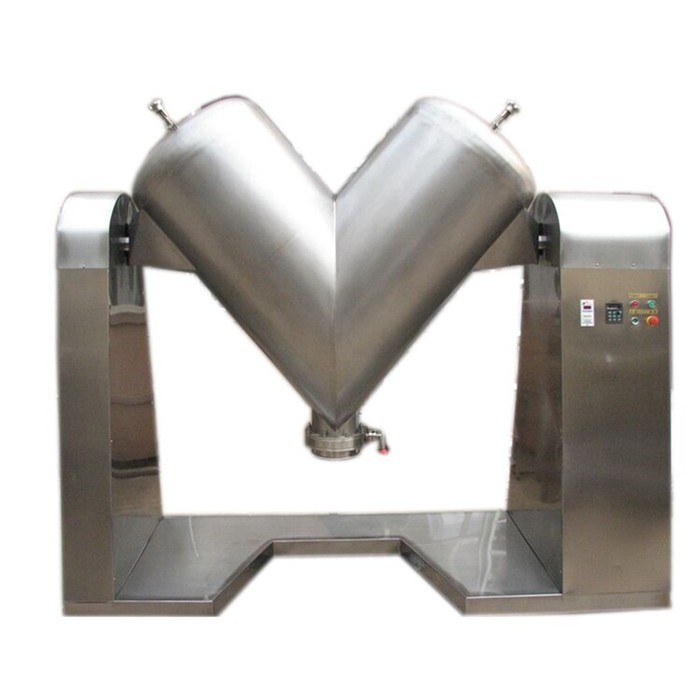

This mixer is suitable for the mixing of dry granule materials for phamacy or other relative industries.
Specialtv:
Unique mixing cylinder,high mixing effects,no dead angle,even mixing.
|
Model |
VH0.1 |
VH0.2 |
VH0.3 |
VH0.5 |
VH1.0 |
VH1.5 |
VH2.0 |
VH2.5 |
VH3.0 |
|
Item |
|
|
|
|
|
|
|
|
|
|
Total Volume(m³) |
0.1 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
|
Optimal loading（kg) |
20 |
40 |
60 |
100 |
200 |
300 |
400 |
500 |
600 |
|
Maximum loading(kg) |
50 |
100 |
150 |
250 |
500 |
750 |
1000 |
1250 |
1500 |
|
L*W*H(MM) |
1900*800*1190 |
2010*850*1440 |
2220*900*1470 |
2400*950*2490 |
2900*1000*2880 |
3000*1100*3110 |
3200*1200*3350 |
3400*1300*3800 |
3600*1400*3950 |
|
Diameter of cylinder |
Φ200 |
Φ400 |
Φ500 |
Φ600 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
|
Diameter of feed port(mm) |
Φ250 |
Φ300 |
Φ300 |
Φ300 |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
|
Diameter of discharge port(mm) |
Φ80 |
Φ100 |
Φ100 |
Φ150 |
Φ150 |
Φ200 |
Φ200 |
Φ200 |
Φ200 |
|
Cylinder speed(kw) |
15 |
15 |
15 |
13 |
10 |
10 |
10 |
8 |
8 |
|
Power(kw) |
1.1 |
1.5 |
1.5 |
1.5 |
3.0 |
3.0 |
5.5 |
7.5 |
7 |
