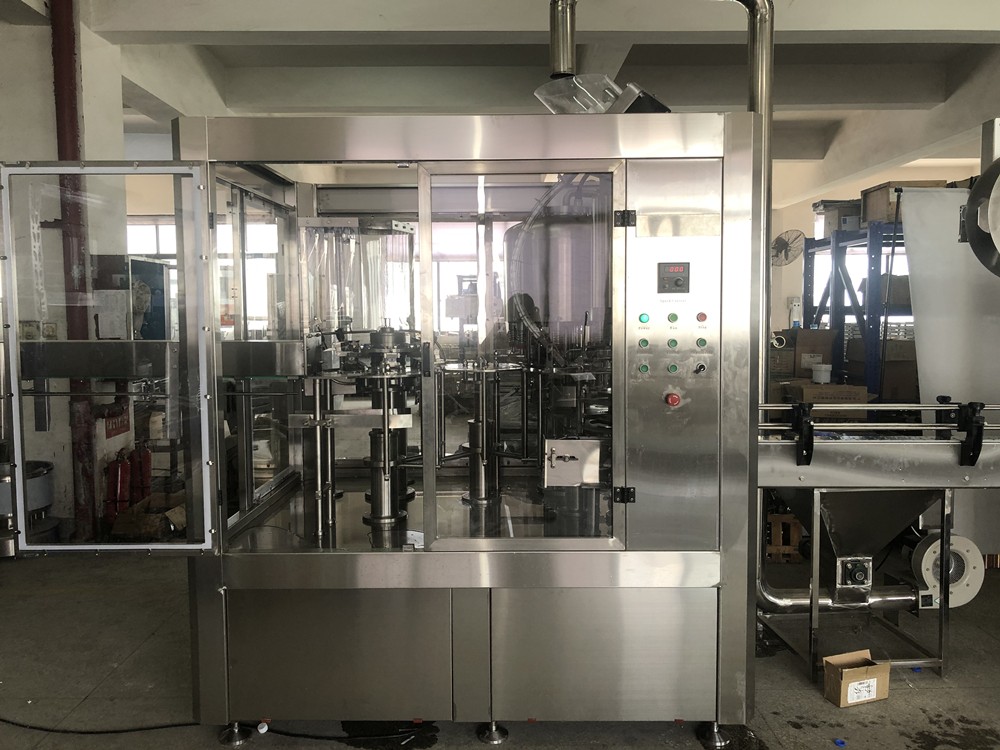

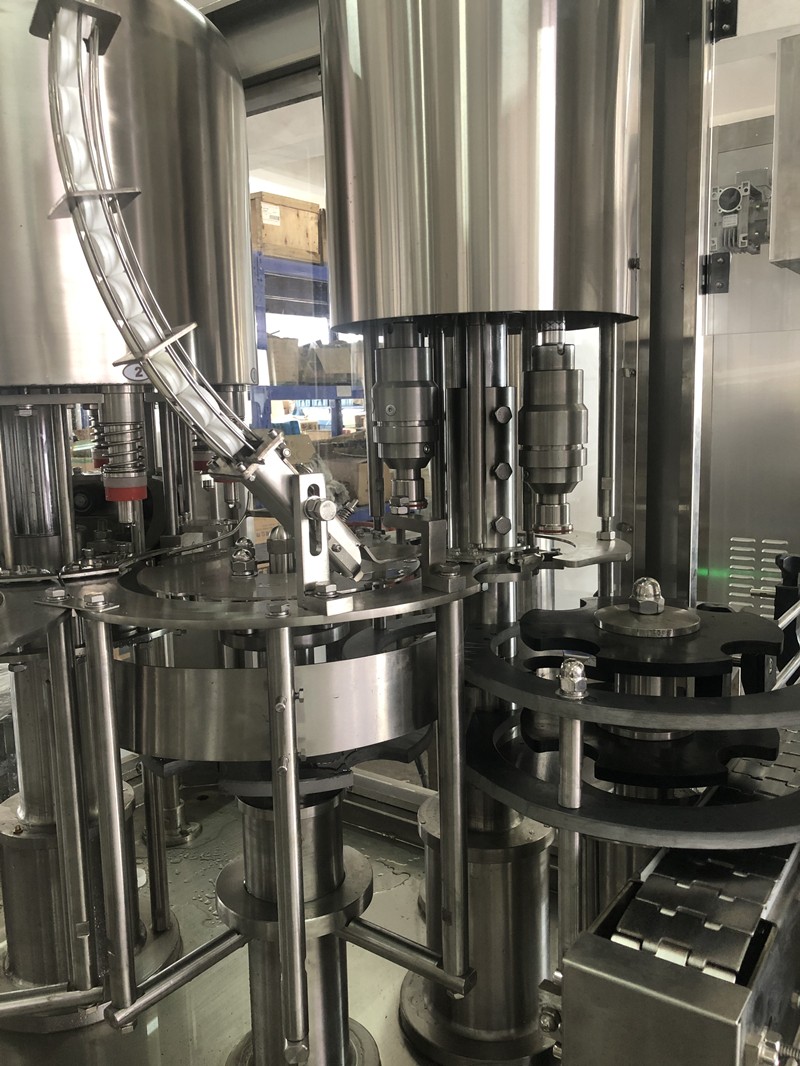

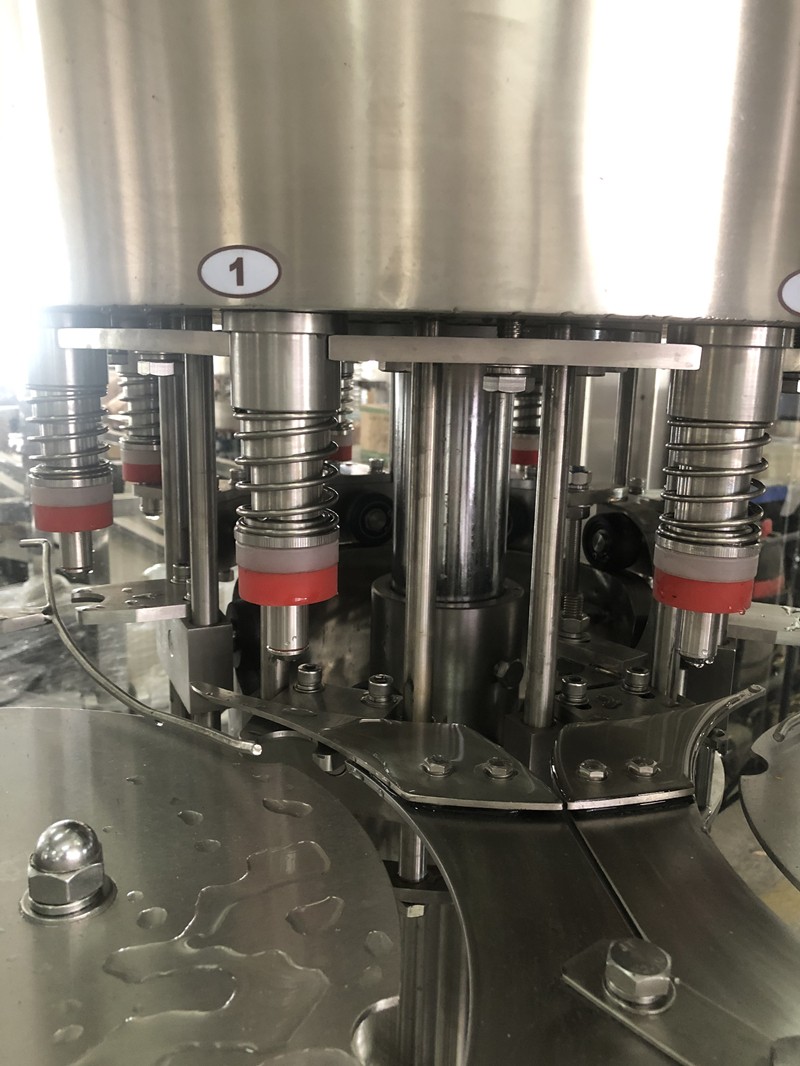

KY8-3-3 washing, filling, capping machine with shrink tunnel

Model	KY8-8-3 washing, filling, capping machine
Capacity(0.5)	2000bph
Washing heads	8
Filling heads	8
Capping heads	3
Power	2.2kw 380v

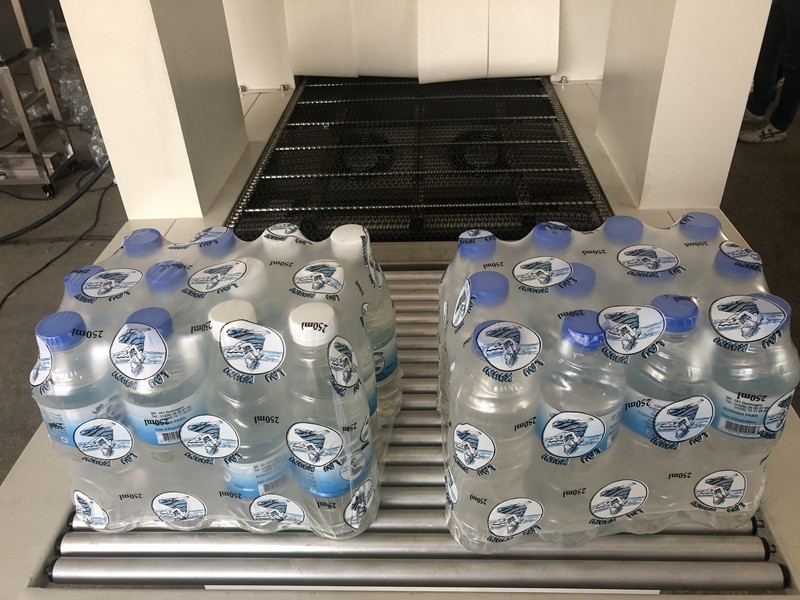

Model	BSS-2000  shrink tunnel
Capacity	2000-5000bph
Tunnel size	1000*150*350mm
Steam consumption	24KGS/h
Steam pressure	0.1-0.4Mpa
Power	9kw 220v/380v/50hz

Main Technical Parameters

Production speed:

Standard label length: 100mm, production speed varies with clients’ needs; standard speed is 100bottle/min(depends on 500ml bottles.)

Shorter are M labels, faster is the production speed.

Applicable Diameter of Bottle Body: Ф28 mm-Ф125mm

Applicable Length of Label: 30 mm ~ 250mm

Applicable Thickness of Label: 0.03 mm ~0.13 mm

Applicable Materials of Label: PVC、PET、OPS
