Capsule Filling Machine

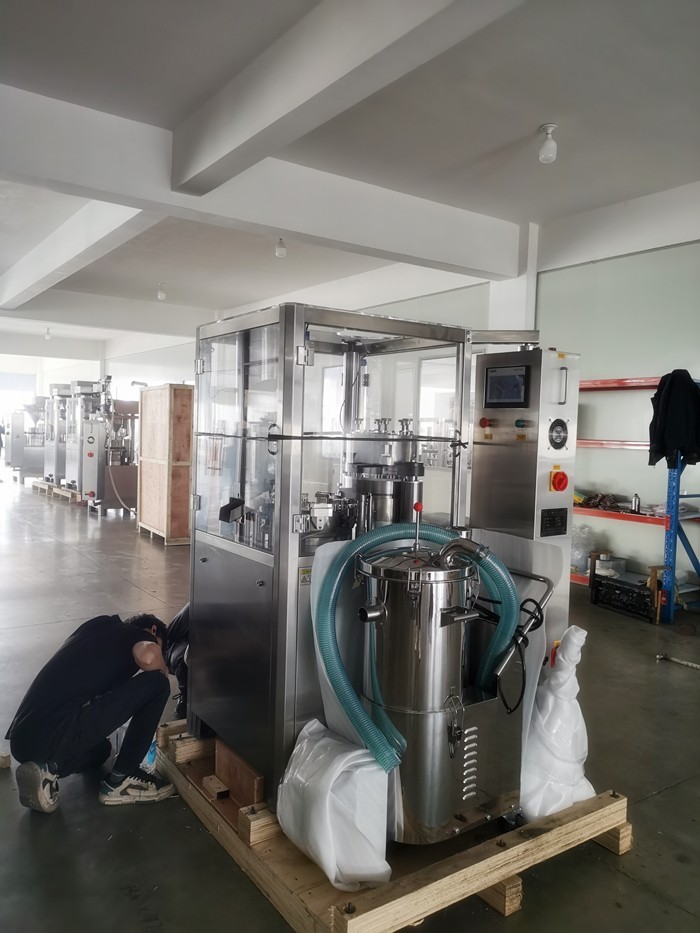

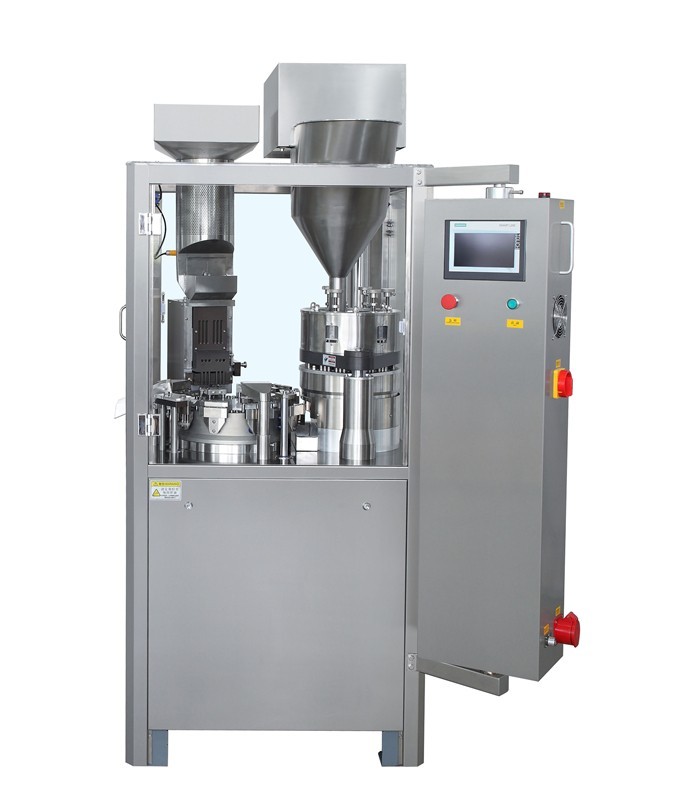

NJP-1200 Model Fully Automatic Capsule Filling Machine

  • Product Item : NJP-1200
  • Category: Capsule filling machine
  • Production Capacity: 1200 Capsules/min
  • Capsule Size:00#-4#capsule
  • power:380V 50Hz 3P
  • Dimension(L*W*H): 1020*860*1970mm
  • Product description:Fully Automatic Capsule Filling Machine
  • Product Detail

Main Technical Parameter

Model

NJP-1200

Output

1200 Capsules/min

Filling dosage

PowderPellet

No.of segment bores

9

Power Supply

380V 50Hz 3P

Capsule Size

00#-4#capsule

Filling error

±3%±4%

Noise

≤78dBA

Making rate

Empty capsule99.9%  Full capsule over99.5

Machine Dimensions

1020*860*1970mm

Machine Weight

900kg


List
Main Electrical Component

NAME

SPECIFICATION TYPE

QTY.

MANUFACTURER

TOUCH SCREEN

TK60711Q

1

TAIWAN WEILUN

PLC

14ES

1

TAIWAN TAIDA

SWITCH POWER

S-35-24

1

TAIWAN MINGWEI

AC CONTACTOR

NXC-12

3

CHINA CHNT

AC CONTACTOR

NXC-25

3

CHINA CHNT

AIR SWITCH

3P25A,1P6A

2

CHINA CHNT

THERMAL RELAY

NXR-25 4-6A

2

CHINA CHNT

THERMAL RELAY

NXR-25 2.5-4A

1

CHINA CHNT

INVERTER

1.5KW

1

CHINA SANJING

MAIN MOTOR

PL30

1

TAIWAN DONGLI

BEARING

EASE IKO

122

JANPAN

VACCUM PUMP

SK SERIES 1.5kw

1

SHANGHAI

DUST COLLECTOR

XCJ SERIES 1.1kw

1

OUR FACTORY

HIGH PRECISION CAM

GRADUATOR

83-6,83-10

2

CHINA SHANDONG

MATERIAL POSITION DETECTOR

PD-M25NB

1

CHINA DONGTOU
