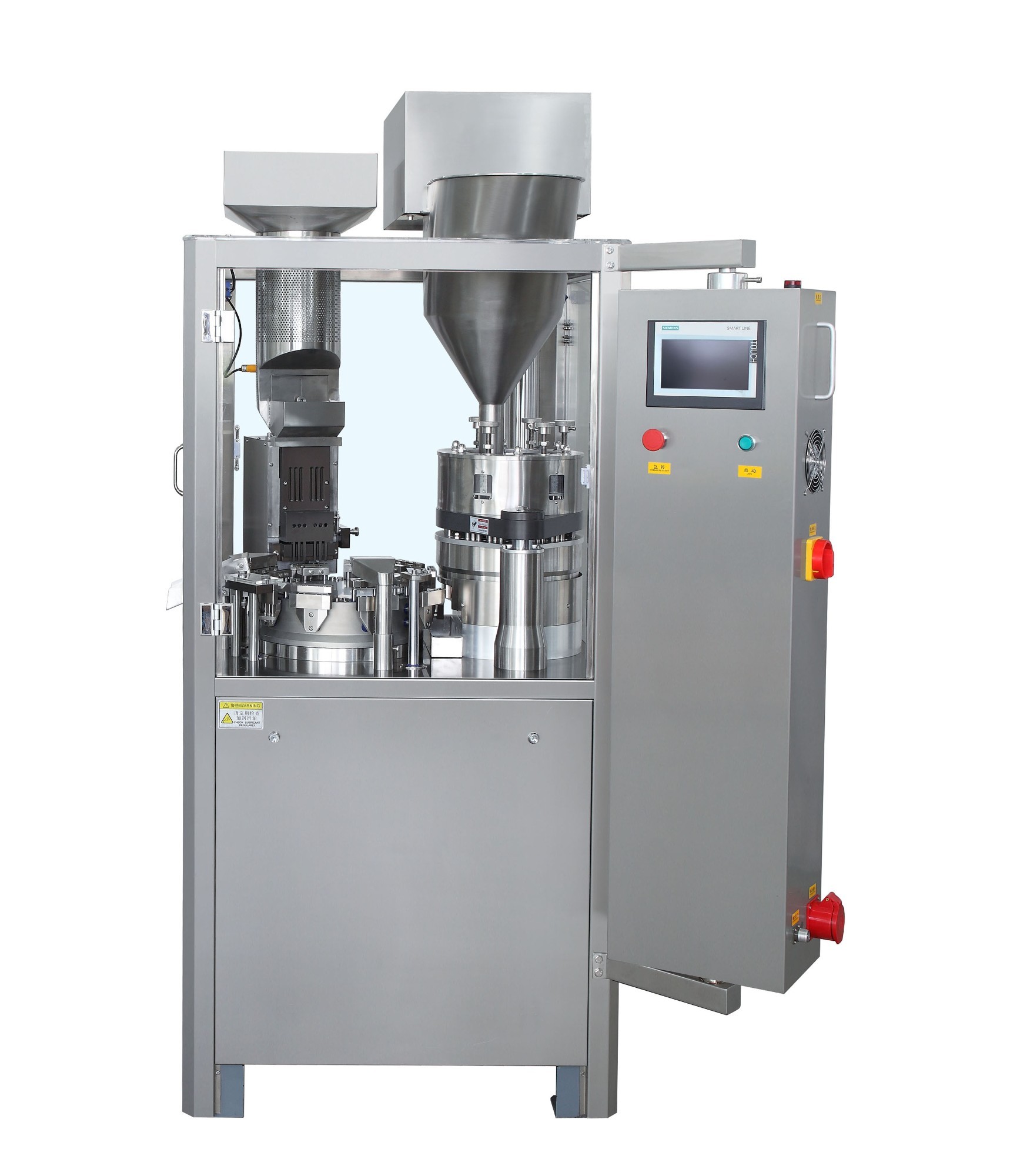

Main Technical Parameter
Model No. |
NJP-800 |
Capacity |
800 capsules/min |
Filling type |
Powder, Pallet |
No. of Dose/holes of each mold |
6 |
Suitable for Capsule |
00#, 0#, 1#, 2#, 3#, 4# |
Filling error |
±3%-±4% |
Noise |
≤75dB(A) |
Voltage |
380V 50Hz 3P |
Total Power |
5.57Kw |
Overall Weight |
900Kg |
Gross Weight |
985Kg |
Machine Dimension |
1020mm. (L) x 860mm(W) x 1970mm(H) |
Packing Dimension |
1420mm. (L) x 1220mm(W) x 1940mm(H) |
Main Electrical Component List:
NAME |
SPECIFICATION TYPE |
QTY. |
MANUFACTURER |
TOUCH SCREEN |
TK60711Q |
1 |
TAIWAN WEILUN |
PLC |
14ES |
1 |
TAIWAN TAIDA |
SWITCH POWER |
S-35-24 |
1 |
TAIWAN MINGWEI |
AC CONTACTOR |
NXC-12 |
3 |
CHINA CHNT |
AC CONTACTOR |
NXC-25 |
3 |
CHINA CHNT |
AIR SWITCH |
3P25A,1P6A |
2 |
CHINA CHNT |
THERMAL RELAY |
NXR-25 4-6A |
2 |
CHINA CHNT |
THERMAL RELAY |
NXR-25 2.5-4A |
1 |
CHINA CHNT |
INVERTER |
1.5KW |
1 |
CHINA SANJING |
MAIN MOTOR |
PL30 |
1 |
TAIWAN DONGLI |
BEARING |
EASE IKO |
122 |
JANPAN |
VACCUM PUMP |
SK SERIES 1.5kw |
1 |
SHANGHAI |
DUST COLLECTOR |
XCJ SERIES 1.1kw |
1 |
OUR FACTORY |
HIGH PRECISION CAM GRADUATOR |
83-6,83-10 |
2 |
CHINA SHANDONG |
PD-M25NB |
1 |
CHINA DONGTOU |
