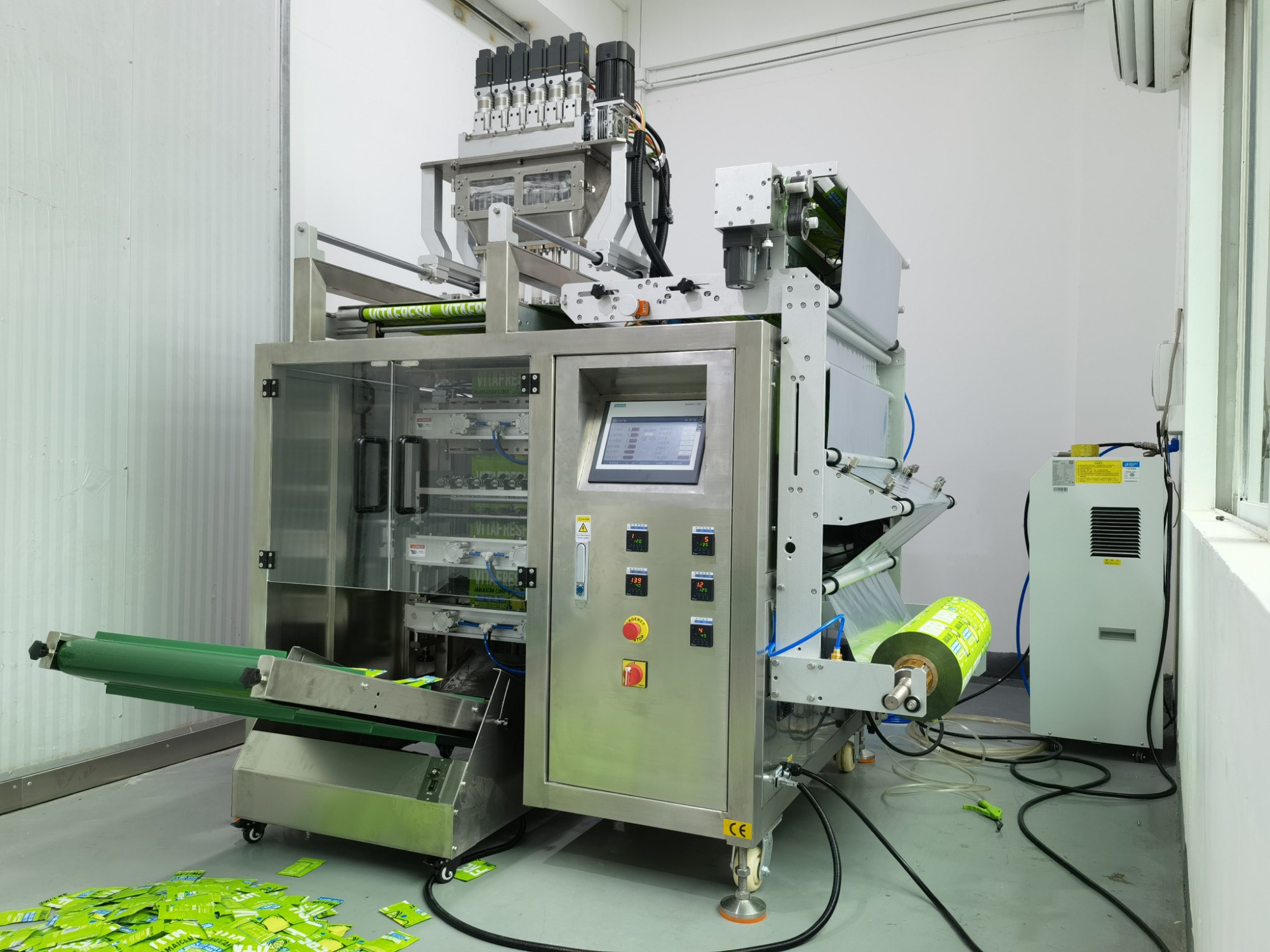

1.Function:
Automatically feeding,measuring volume, making bags, filling, sealing, cutting, printing
the lot number and cutting easy tearing notches,finished product conveying.
2.Standard Features:
(1).Famous brand PLC control system,large touch screen,convenient to operate;
(2).Film drawing down system by famous bland servo motor control.
(3).Advanced design,high precision and fast speed;
(4).Various alarm system to reduce waste;
(5).Photoelectric tracking system for precise bag length and position of film
(6).Equip with the folding bag conveyor,controlled by servo motor, alternating motion.
(7).Each tracks each auger filling by servo motor
3.Specification :
Model |
KY1200F-6 |
Tracks number |
6 Lanes |
Packed item |
30-60 powder |
Capacity |
About 150-180 bags/min,basic on the product and film |
Measuring method |
Auger filling with stirring inside by servo motor*6 |
Bags size |
Length: 45--160 mm Width:60--100mm |
Film width |
Max.1200mm,adjustable |
Film thickness |
0.04--0.10mm |
Sealing type |
4 side sealing |
Cutting type |
Zig zag cutting with perforated or straight cutting with easy tear |
Printer type |
6 heads ribbon printer |
Film material |
Laminated film,like PET/PE,OPP/PE,NY/PE,PET/AL/PE.etc. |
Air consumption |
0.8Mpa 0.8m3/min |
Power source |
1N+PE/50HZ/AC220V(380V)/5.5KW |
Dimension |
2000*2000*2700MM |
Weight |
1200kgs |
Brand of main electric part of machine
S/N |
Name |
Standard |
1 |
Touch screen |
Weinview /Taiwan |
2 |
PLC |
Mitsubishi /Japan |
3 |
Servo motor |
Panasonic /Japan |
4 |
Servo motor drive |
Panasonic /Japan |
5 |
Temp.control |
Yudian/China |
6 |
Pneumatic elements |
Airtac / Taiwan |
7 |
SSR |
Fotek / Taiwan |
8 |
Intermediate relay |
Omron /Japan |
9 |
Approach switch |
Autonics / S.Korea |
10 |
Photocell |
CNBDL/China |
