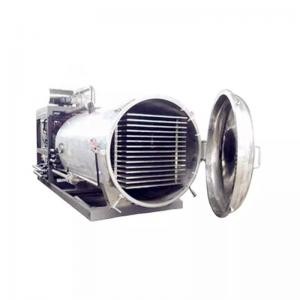

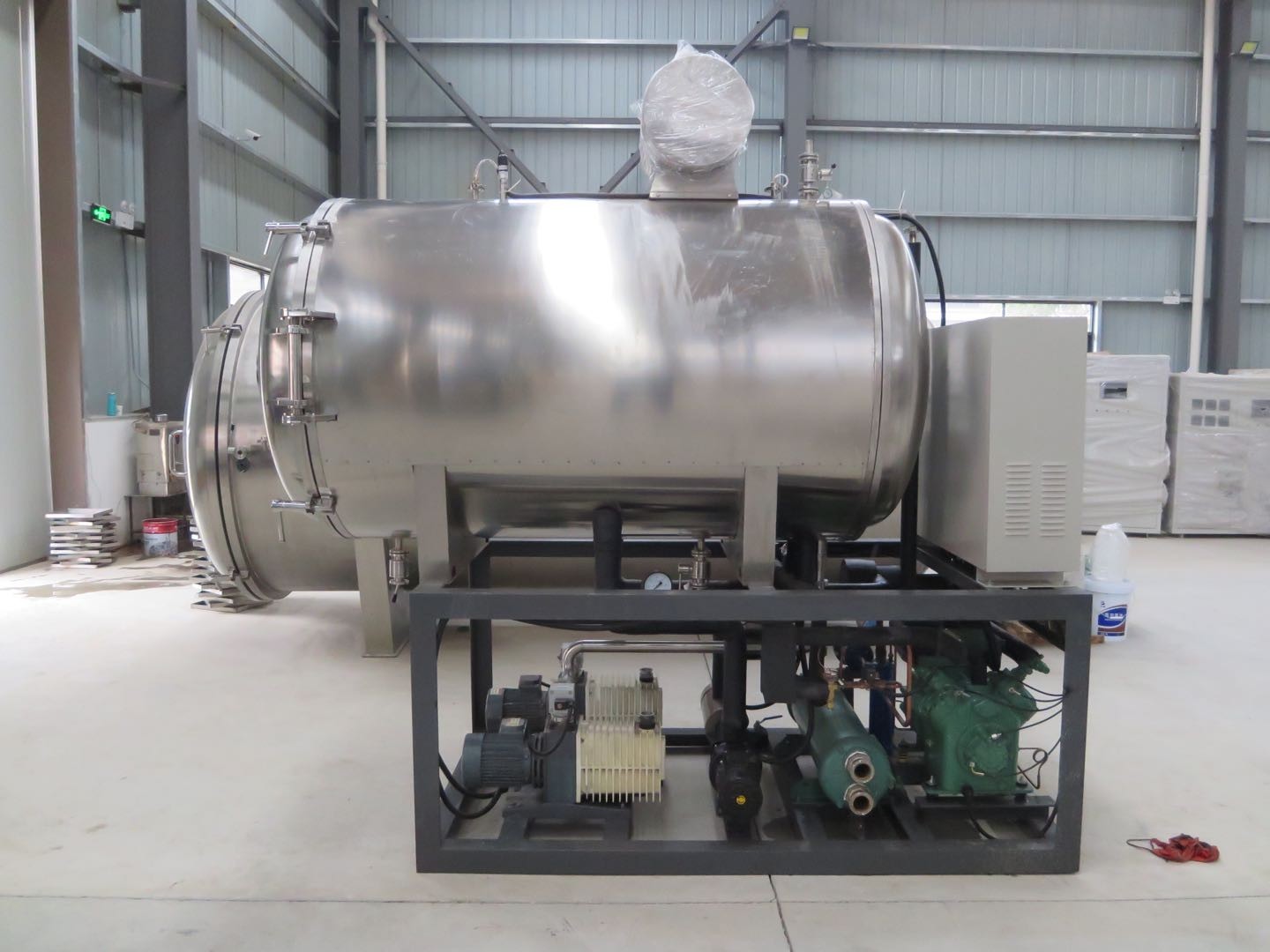

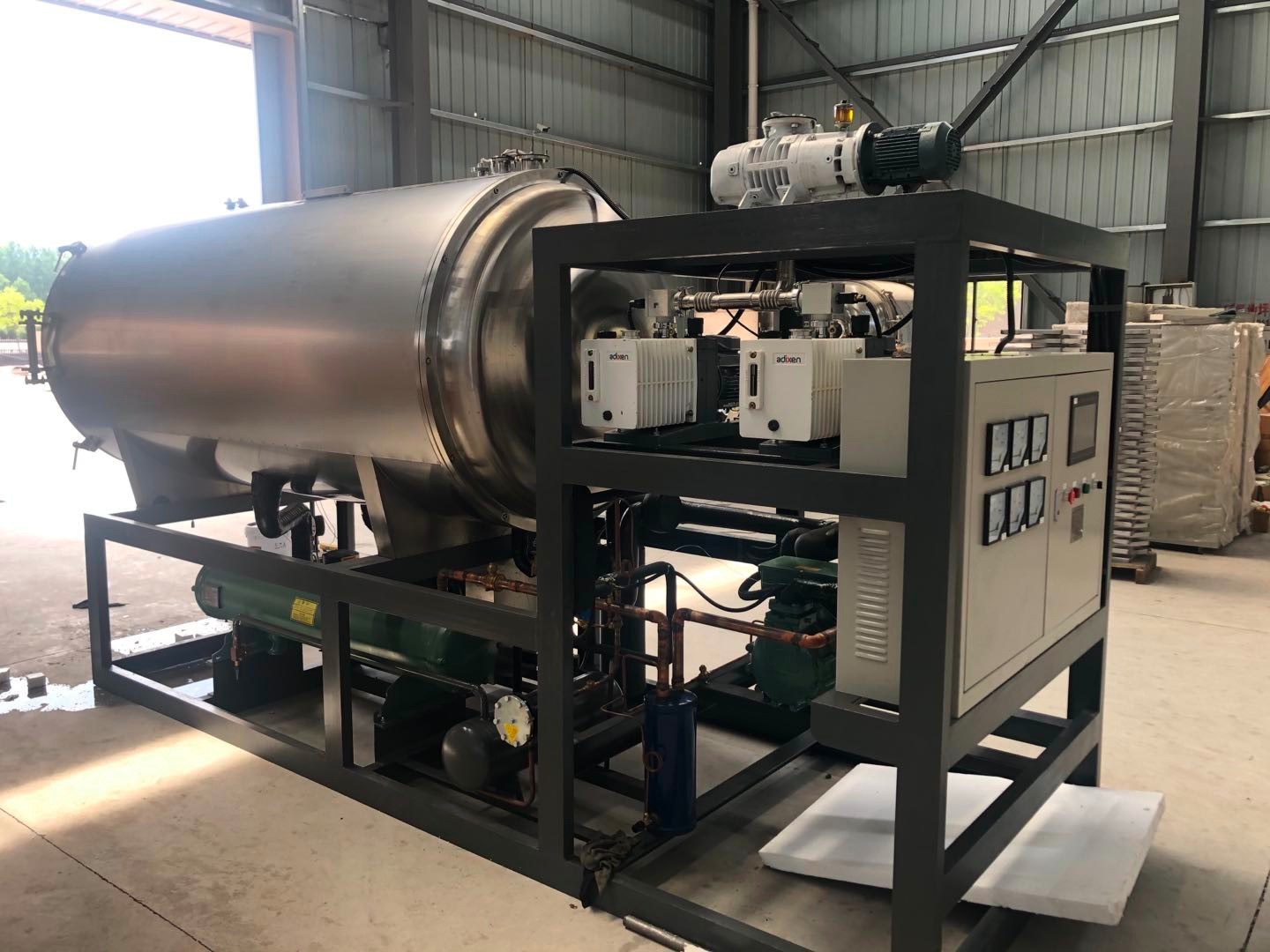

ZG-20㎡ FREEZE DRYER
1.Dry at low temperature, the loss of some volatile components is very small. So it is fit for some chemical products, pharmaceuticals and food drying.
2. During the freeze-drying process, the growth of microorganisms and enzymes function does not proceed, so they can maintain the original character.
3.Freeze-drying within the frozen state, the volume is almost unchanged and maintain the original structure, and no enrichment phenomenon.
4.After drying, the material will be loose and porous, like sponge. After adding water the material dissolves rapidly and completely and
regain the original character almost immediately.
5.As drying under vacuum, there is little oxygen, so a number of easily oxidized components have been protected.
6.Drying can eliminate more than 95- 99% of moisture, so that the dried product can be stored for a long time without deterioration. Therefore, the freeze-drying is widely used in pharmaceutical industry, food industry, researches and other ways
|
ZG-20㎡ Freeze Dryer |
||
|
Construction |
Technical parameters |
Remark |
|
Base Structure |
||
|
Effective area of shelves |
20㎡ |
|
|
Input capacity |
200kg |
|
|
Maximum Condenser capacity |
400kg/batch |
|
|
Power supply |
380V/50Hz/3P |
|
|
Power consumption |
64.3Kw |
|
|
Cooling Water |
20T/Hr |
Recyclable |
|
Machine size（L*W*H） |
subject to the actual design |
|
|
Main Structure |
Unity Type |
|
|
Weight |
8500Kg |
|
|
Dry Chamber |
||
|
Dry Chamber Material |
SUS304/ 6mm thick |
|
|
Dry Chamber Shape and dimension |
Cylinder Φ1600×1800 |
|
|
Door lock |
Hand knob lock |
|
|
Door Open direction |
Right to left |
Decided by customer |
|
Open angle |
＞110° |
|
|
Door material |
SUS304 |
|
|
Surfaceness |
Ra≤0.5um |
|
|
Observation window |
Frost-resistant glass φ200mm、δ25~27 |
Installed on the front
|
|
Door seal |
Medical o section silicone rubber seal |
|
|
Temperature sensor |
T-type thermocouple |
|
|
CIP(clean in place) |
SUS304 wide angle sprayer |
|
|
CIP inlet valve |
Ningbo |
|
|
CIP outlet valve |
Ningbo |
|
|
pipe |
SUS304 |
|
|

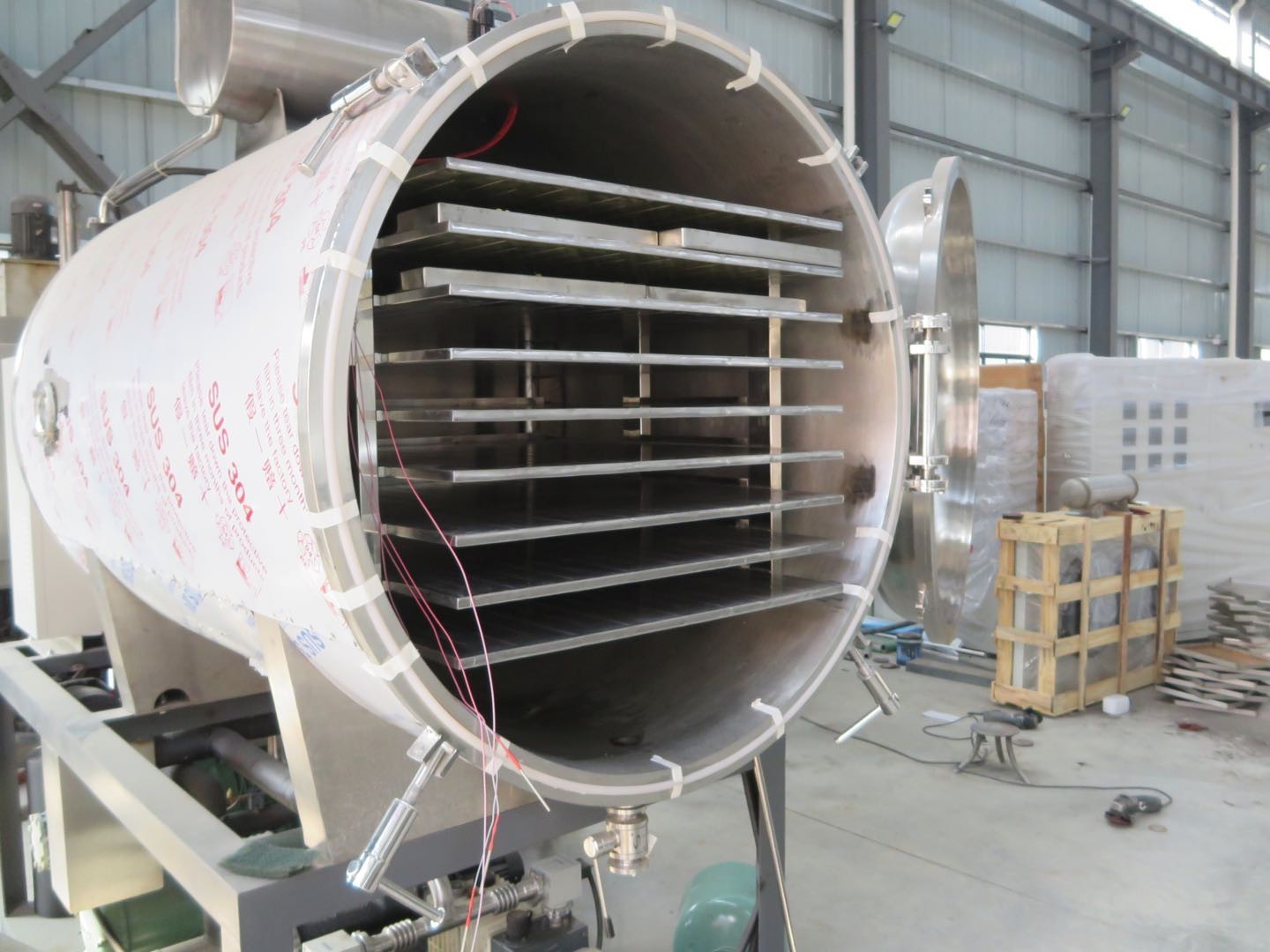

Shelves |
||
|
Shelf material |
SUS304 |
|
|
Shelf Surfaceness |
Ra≤0.5um |
|
|
Shelf quantity.（pc） |
14+1 Layers |
The top layer of the shelves is temperature compensation |
|
Stainless steel tray |
ANHUI KEYO 470*325*30mm |
126pcs
|
|
Distance between shelves |
75 mm |
|
|
Shelf dimension（L*W*H） |
1430*1000*15/ layer |
|
|
Shelf Cooling Rate |
+20~-40℃≤60min |
No-load |
|
Shelf lowest temperature |
-50℃ |
|
|
Shelf highest temperature |
+70℃ |
|
|
Heating power consumption |
24Kw/380V/50Hz |
|
|
Shelf fence |
prevent the tray cross over the shelf |
|
