Mixer

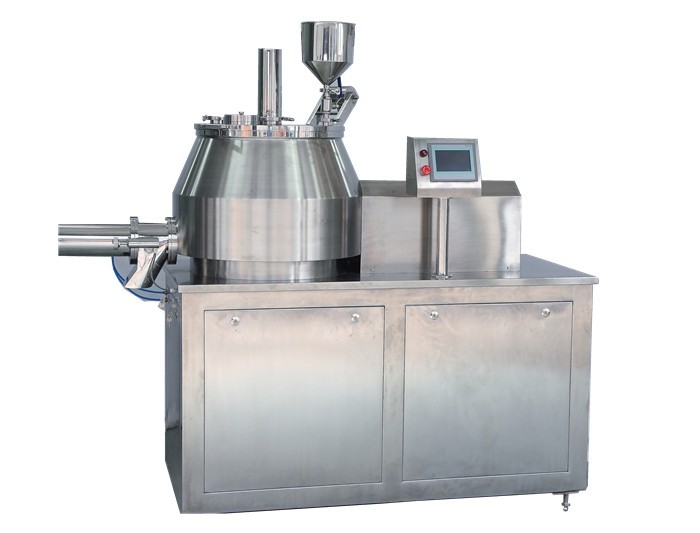

High Speed Granulator KY-50

  • Product Item : KY-50
  • Category: Granulator
  • Feeding Quantity (kg/batch) :8-20
  • Final Granular Size (mm) :¢0.14-1.5 (12-100mesh)
  • Air Compressed (m3/mpa):0.3/0.7
  • Dimension(L*W*H): 1750*600*1620MM
  • Product description:High Speed Granulator
  • Product Detail

Performance

High speed mixer & granulator is a high efficiency and high speed equipment. It can mix different powder materials and granular in one process, widely used in pharmaceutical, foodstuff and chemical industries.

Main Technical Data

Product No.

KY-50

Total Volume (l)

50

Feeding Quantity (kg/batch)

8-20

Mixing Granulating Time (min)

mixing2, granulating 7-15

Final Granular Size (mm)

0.14-1.5 (12-100mesh)

Mixing Motor (kw)

5.5

Rotational Speed of Mixing (r/min)

25-500

Rotational Speed of Gutter (r/min)

50-3000

Granuating Motor (kw)

1.5

Air Compressed (m3/mpa)

0.3/0.7

Water Inlet Pipe (mm)

8

Air Inlet Pipe (mm)

8

Overall Size (mm)

1750*600*1620

Weight (kg)

500


PREVIOUS:High Speed Granulator KY-100

NEXT:KY-600-1S Vibrating screen
