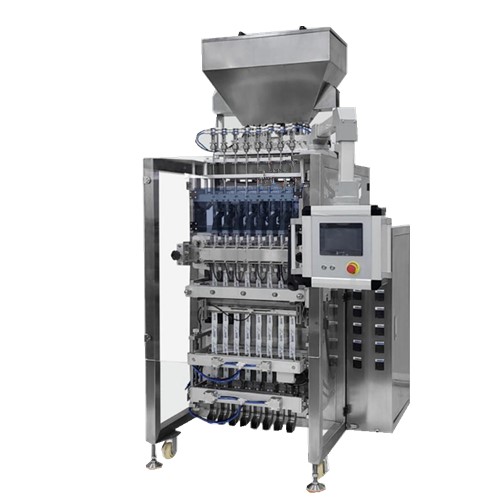

State-of-art but simple design, easy to operate and maintain;
Automatic measurement, bag making, filling, sealing, slitting, batch number printing, slitting, easy tearing;
Hygienic structure, the product contact part is made of stainless steel, so the packaging process is safe and hygienic.
Unique Self Diagnostics feature results in ease of operation and fewer setting downtimes. Depending on the sachet size, up to 10 lanes can be processed;
Close down type mechanism, defending dust into the inside of the machine;
The optical tracking system is adopted to ensure the automatic double-sided pattern of the bag and has an automatic counting function;
The actuators such as vertical seal, horizontal seal, packing, batch number, dashed line, horizontal seal, etc. can be adjusted through the color touch screen.
Model |
KY560Y |
Lane number |
3-10 |
Filling Method |
1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump |
Capacity |
Max.50 cycle/min |
Bag size |
L:50-180mm;W:25-95mm |
Film width&thickness |
Max.560mm,0.07-0.10mm |
Sealing type |
3 side sealing |
Cutting type |
1.Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut |
Air&Power |
0.8Mpa ,0.8m³/min; 5.5kw |
DIM & WT |
1685*1300*2005mm; 550kg |
